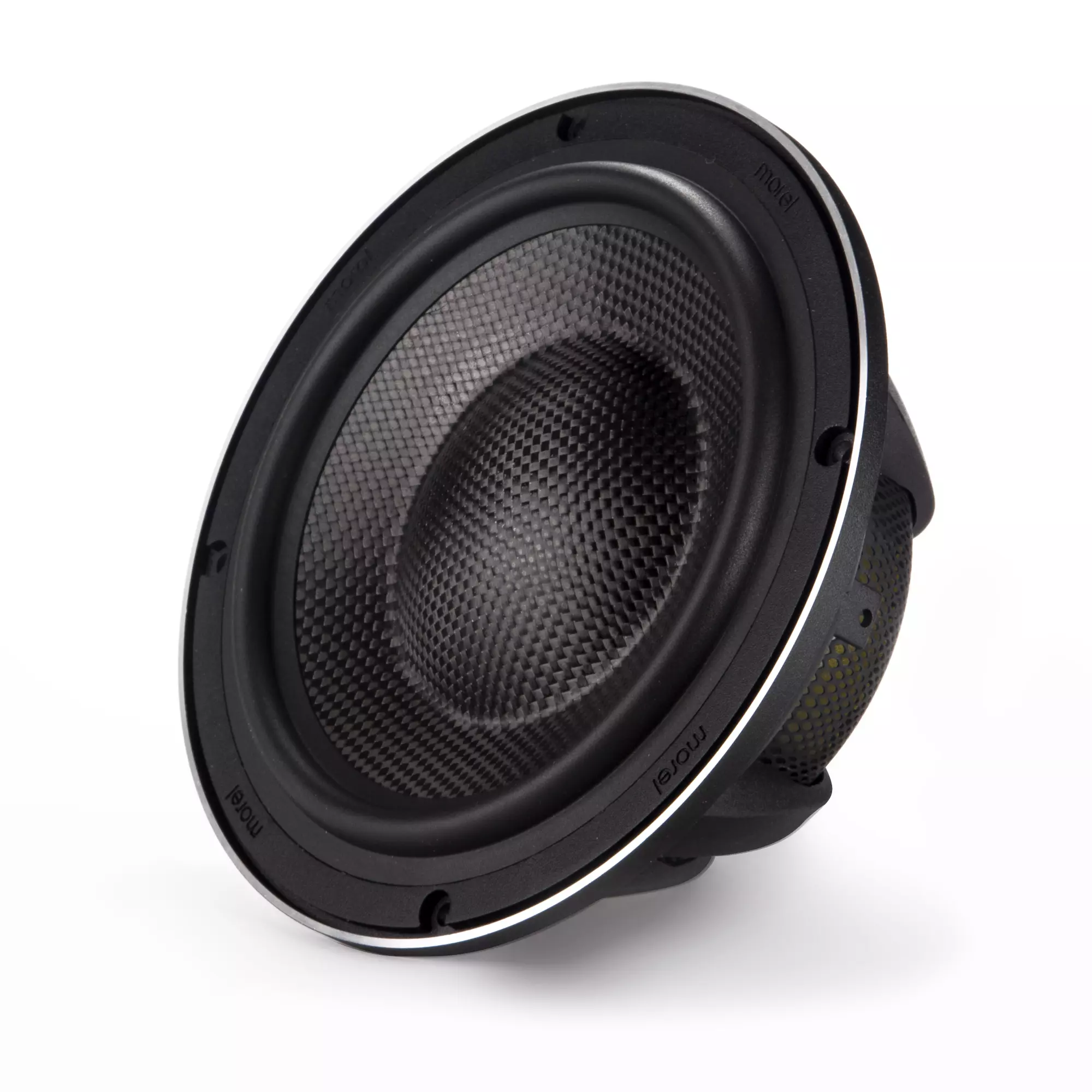

ELATE CARBON WOOFER
Không phải tất cả các trình điều khiển đều được tạo ra như nhau và loa trầm Elate Carbon đầy cảm hứng về mặt thị giác đã được phát triển với mục tiêu hướng đến hiệu suất ở cấp độ tiếp theo
| Model | ELATE CARBON MW5 | ELATE CARBON MW6 | ELATE CARBON MW9 |
|---|---|---|---|
| Nominal Impendance (ohm) 4 | 4 | 4 | 4 |
| Power Handling Wrms | 160 | 180 | 200 |
| Max. Trans. Pwr Handling Wrms | 1000 | 1000 | 1000 |
| Sensitivity (2.83 V/1M) dB | 85 | 87 | 89 |
| Frequency response Hz | 40 – 5000 | 30 – 4000 | 25 – 3000 |
| Resonant Freq. Fs Hz | 64.4 | 45 | 44 |
| Voice Coil Diameter mm (inch) | 75 (3) | 75 (3) | 75 (3) |
| Voice Coil Height mm (inch) | 14.50 (0.57) | 14.50 (0.57) | 14.50 (0.57) |
| Voice Coil Type/Former | Titanium | Titanium | Titanium |
| Voice Coil Wire | HexatechTM Aluminium | HexatechTM Aluminium | HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 | 3.6 | 3.6 |
| Voice Coil Induct. @1 kHz (mH) | 0.615 | 0.615 | 0.615 |
| Magnet System | Double magnet rear vented | Double magnet rear vented | Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) | 5 (0.20) | 5 (0.20) |
| B-Flux Density (T) | 0.66 | 0.75 | 0.74 |
| BL Product/BXL | 5.15 | 6.51 | 5.15 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) | ±4.75mm (0.18) | ±4.75mm (0.18) |
| Suspension Compliance CMS – mm/N | 0.35 | 0.67 | 0.36 |
| Electrical Q Factor QES | 0.63 | 0.47 | 0.61 |
| QTS | 0.56 | 0.43 | 0.56 |
| QMS | 4.15 | 7.19 | 6 |
| Mech. Resistance RMS- N . S / M | 1.32 | 1 | 1.2 |
| Moving Mass MMS – gr/ounce | 18 (0.63) | 18 (0.63) | 30 (1.05) |
| Equiv. Can Air Load VAS – L (cu.ft3) | 4.5 (0.6) | 13.3 (0.47) | 30.9 (1.1) |
| Effective Piston Area SD sq.cm (sq.inch) | 90 (13.95) | 120 (18.6) | 219 (33.95) |
| Cone Type | One-piece formed | One-piece formed | One-piece formed |
| Cone Material | DPC | DPC | DPC |
| Unit Diameter mm(inch) | 135 (5.25) | 165 (6.50) | 222 (8.75) |
| Mounting Depth mm (inch) | 60 (2.36) | 61 (2.40) | 71 (2.80) |
| Mounting Cutout | 120 (4.72) | 141 (5.55) | 192 (7.56) |
| Net Wight Kg (lb) | 1.05 (2.31) | 1.18 (2.60) | 1.42 (3.13) |
