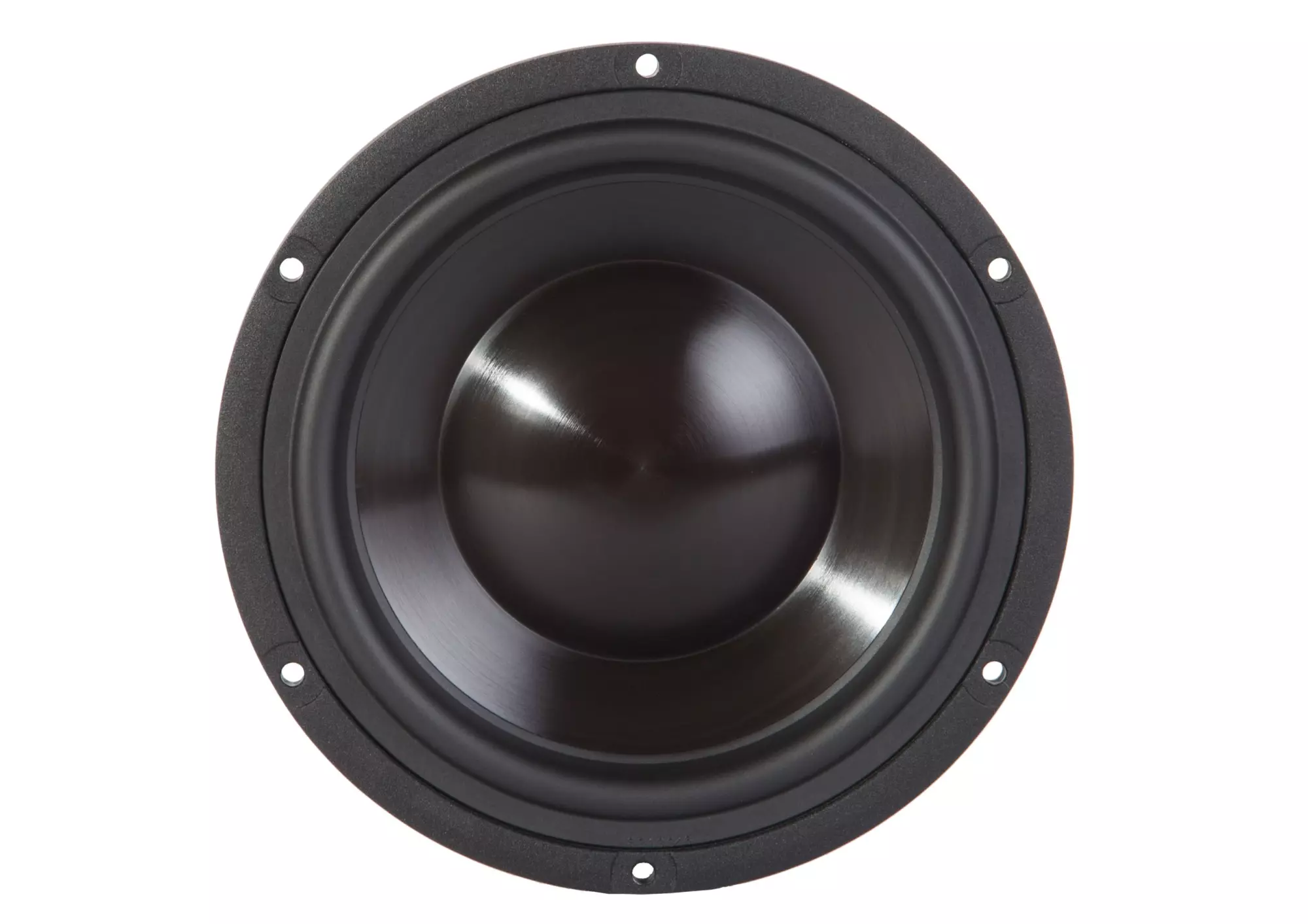

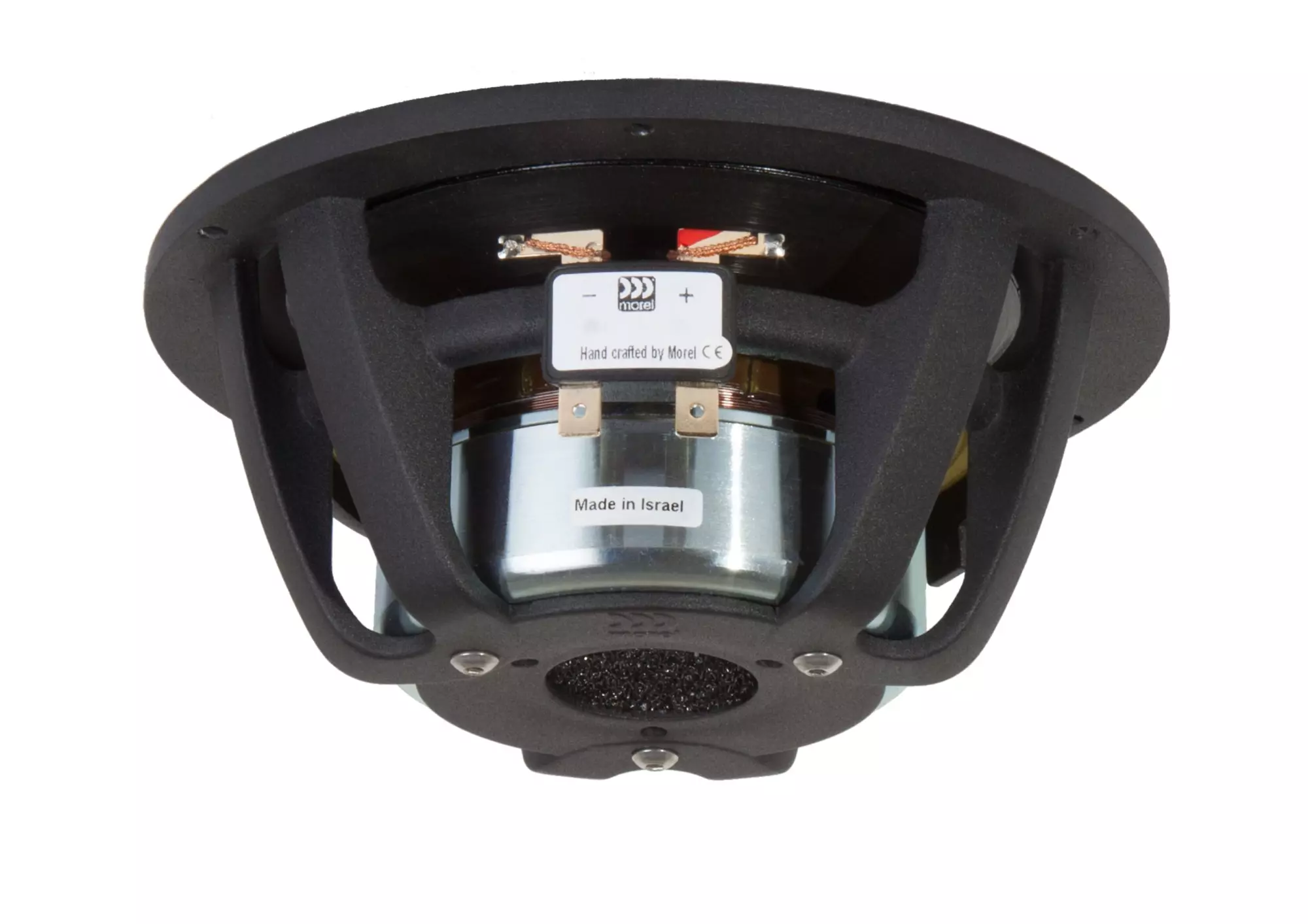

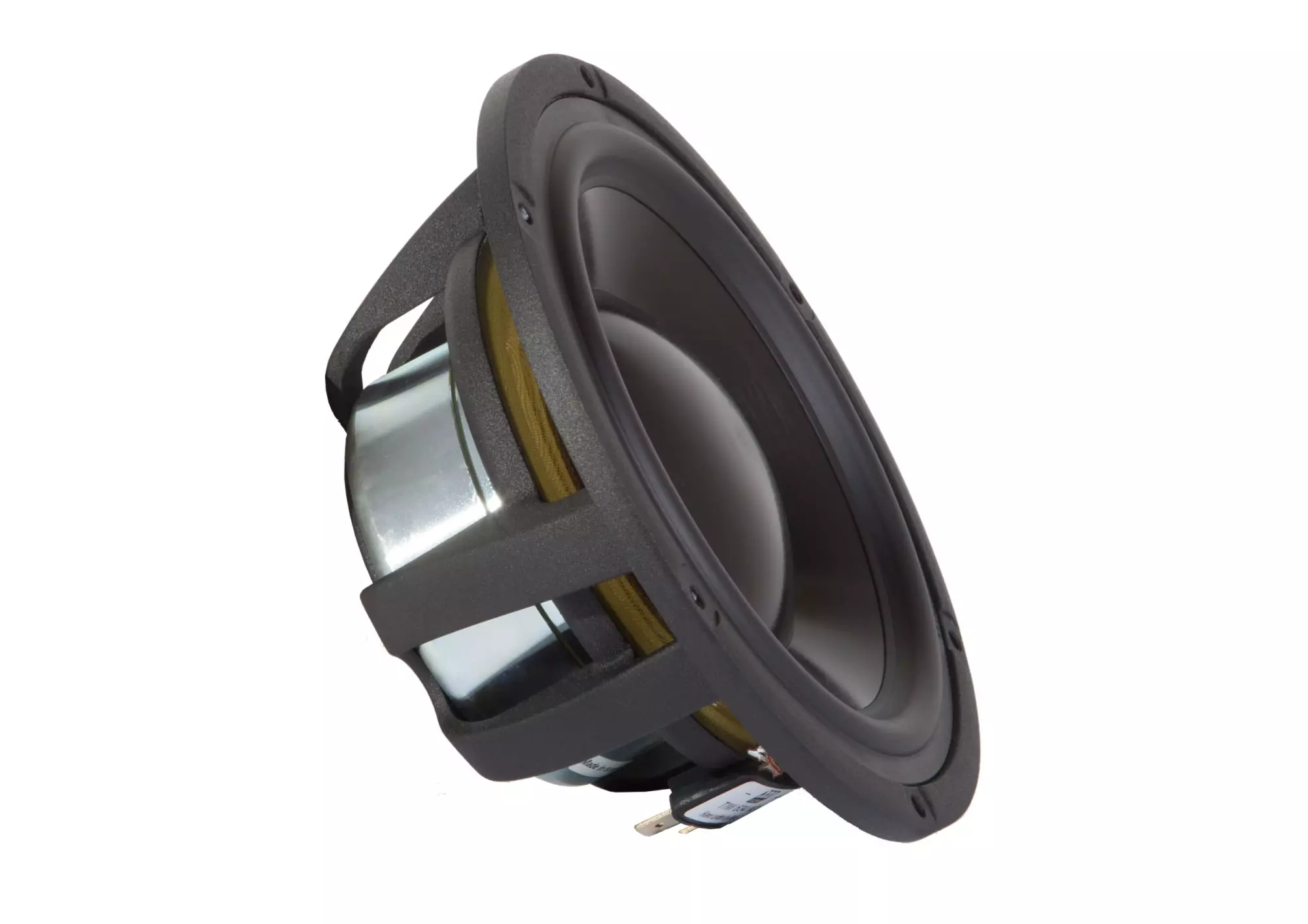

TICW 634ND
Khung nhôm đúc Uniflow™
Hệ thống nam châm Neodymium/Ferrite Hybrid™
Cuộn dây titan
Cuộn dây nhôm Hexatech™ lớn 3″
Ống đồng Neolin Motor
Xử lý công suất cao
Xmax cao, Qts thấp, Fs thấp, QMS cao
GENERAL DATA
| Overall Dimensions | DxH | 160mm (6.3″) x 69mm (2.71″) |
| Nominal Power Handling (DIN) | P | 150W |
| Transient Power 10ms | 1000W | |
| Sensitivity 2.83V/1M | 88dB | |
| Frequency Response | See graph | |
| Cone/Dome Material | injected Damped Polymer Composite | |
| Net Weight | Kg | 1.10 Kg |
ELECTRICAL DATA
| Nominal Impedance | Z | 4Ω |
| DC Resistance | Re | 3.7Ω |
| Voice Coil Inductance @ 1KHz | LBM | 0.29 mH |
VOICE COIL AND MAGNET PARAMETERS
| Voice Coil Diameter | DIA | 75 mm (3″) |
| Voice Coil Height | 16 mm (0.62″) | |
| HE Magnetic Gap Height | HE | 5 mm (0.20″) |
| Max. Linear Excursion | X | ± 5.5mm |
| Voice Coil Former | Titanium | |
| Voice Coil Wire | Hexatech™ Aluminum | |
| Number Of Layers | 2 | |
| Magnet System Type | Hybrid™ Neodymium/Ferrite | |
| B Flux Density | B | 0.78 T |
| BL Product | BXL | 6.6 T.m |
THIELE/SMALL PARAMETERS
| Suspension Compliance | Cms | 0.988 mm/N | 1.302 mm/N |
| Mechanical Q Factor | Qms | 4.98 | 3.4 |
| Electrical Q Factor | Qes | 0.37 | 0.31 |
| Total Q Factor | Qts | 0.35 | 0.29 |
| Mechanical Resistance | Rms | 0.904Ωm | 1.052 Ωm |
| Moving Mass | Mms | 17.7 gr | 17.7 gr |
| Eq. Cas Air Load (liters) | VAS | 17.3 Lt | 25.50 Lt |
| Resonance Frequency | Fs | 40 Hz | 34 Hz |
| Effective Piston Area | SD | 119 cm ² | 119 cm ² |
