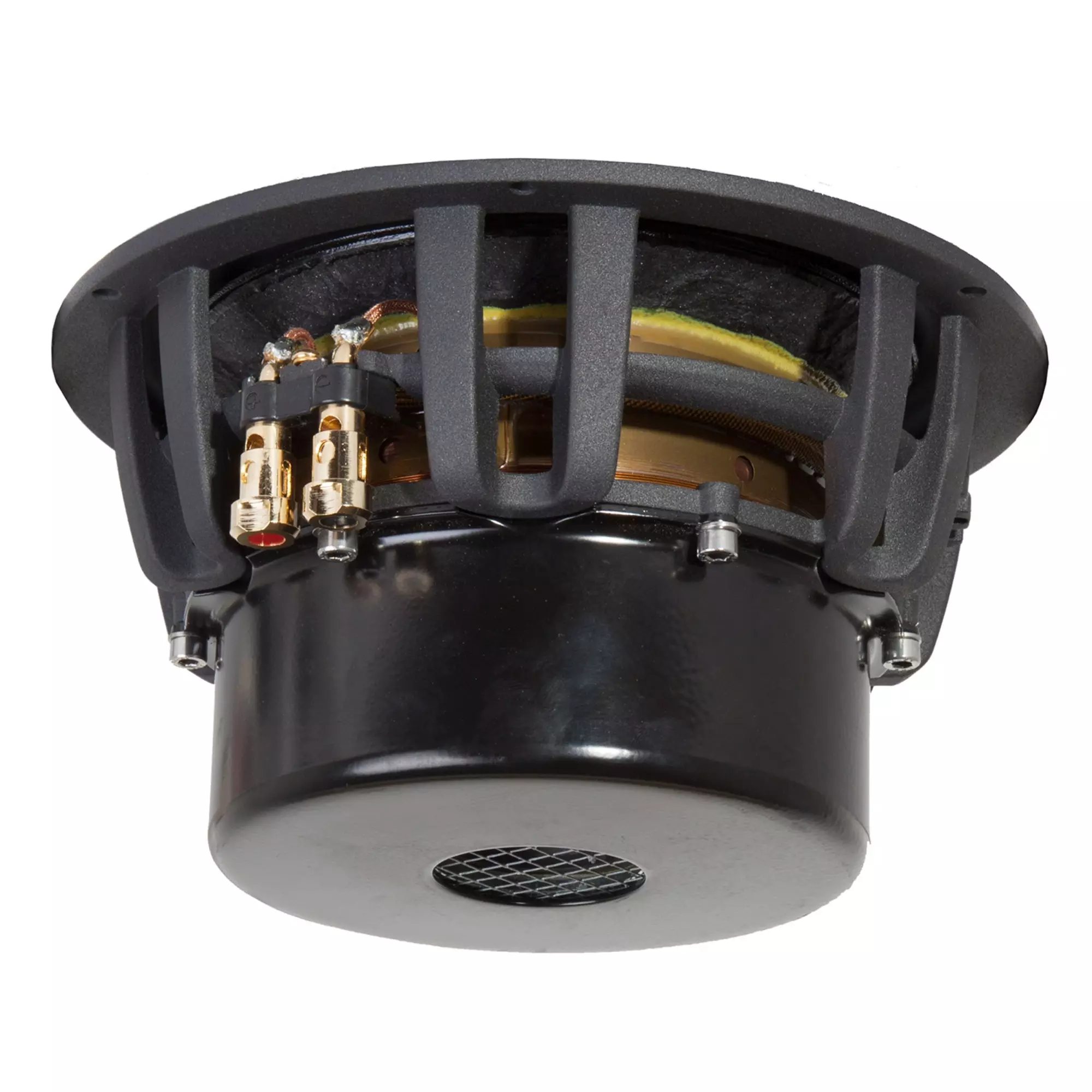

TICW 958FT
Khung nhôm đúc Uniflow™
Hệ thống nam châm Ferrite đôi thông lượng cao
Ống bọc đồng Neolin Motor
Cuộn dây nhôm Hexatech™ lớn 5,1″
Cuộn dây titan
Nón giấy/vòm trung tâm một mảnh
Bộ phận lắp ráp nón tự định tâm Accucenter™
GENERAL DATA
| Overall Dimensions | DxH | 222mmx125mm(8.74″x4.92″) |
| Nominal Power Handling (DIN) | P | 500W |
| Transient Power 10ms | 1500W | |
| Overall Dimensions | 85 dB SPL | |
| Frequency Response | See graph | |
| Cone/Dome Material | Composite cellular fiber | |
| Net Weight | Kg | 6.6 kg |
ELECTRICAL DATA
| Nominal Impedance | Z | 8Ω |
| DC Resistance | Re | 6.3Ω |
| Voice Coil Inductance @ 1KHz | LBM | 0.62 mH |
VOICE COIL AND MAGNET PARAMETERS
| Voice Coil Diameter | DIA | 130 mm (5.1″) |
| Voice Coil Height | 33 mm (1.4″) | |
| HE Magnetic Gap Height | HE | 12 mm (0.47″) |
| Max. Linear Excursion | X | ± 10.5mm (0.45″) |
| Voice Coil Former | Titanium | |
| Voice Coil Wire | Hexatech™ Aluminum | |
| Number Of Layers | 2 | |
| Magnet System Type | High Flux Double Ferrite Vented | |
| B Flux Density | B | 0.62 T |
| BL Product | BXL | 14.6 N.A |
THIELE/SMALL PARAMETERS
| Suspension Compliance | Cms | 0.53 mm/N |
| Mechanical Q Factor | Qms | 3.2 |
| Electrical Q Factor | Qes | 0.34 |
| Total Q Factor | Qts | 0.31 |
| Mechanical Resistance | Rms | 3.61 kg/s |
| Moving Mass | Mms | 72.16 gr |
| Eq. Cas Air Load (liters) | VAS | 45.4 Lt |
| Resonance Frequency | Fs | 26 Hz |
| Effective Piston Area | SD | 243 cm ² |
